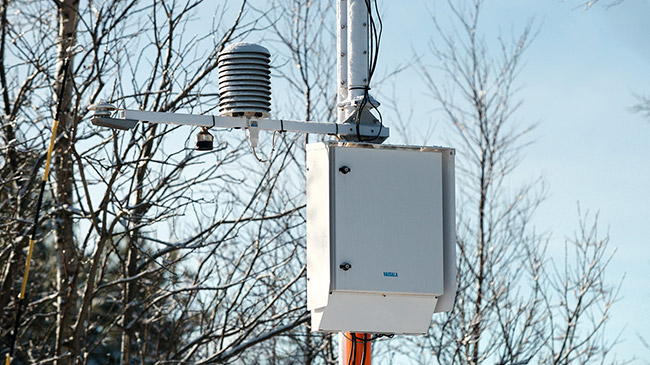

Vaisala Automatic Weather Station AWS310
The Vaisala Automatic Weather Station AWS310 is a complete solution for professional weather measurement. The AWS310 provides all of the weather data you need for making confident decisions about weather forecasts. The design quality of Vaisala weather stations has been proven not only through extensive tests in the development phase, but also in the field with over 20,000 installations worldwide.
Overview
When you choose the Vaisala AWS310, you get a complete communication and data monitoring solution, including sensor, electronics, mast, and power supply – everything you need to start taking accurate and reliable weather measurements.
The main benefits of the AWS310:
- Common options preconfigured; also fully customizable for special needs
- WMO-compliant sensors for validated data
- Remote configuration management
- Easy remote monitoring of network status via optional NM10 software
- Long calibration intervals
- Fast delivery for preconfigured systems
Technical Specifications
| Data Collection Platform | Vaisala Datalogger QML201 |
| Operating temperature | -40...+60 °C |
| Storage temperature | -60...+70 °C |
| Humidity | 0...100 %RH |
| Environmental tests: Operating | |
| Dry heat | IEC 60068-2-2 |
| Cold | IEC 60068-2-1 |
| Damp heat | IEC 60068-2-30 |
| Environmental tests: Storage | |
| Dry heat | IEC 60068-2-2 |
| Cold | IEC 60068-2-1 |
| Damp heat | IEC 60068-2-30 |
| Environmental tests: Transport | |
| Vibration (random) | ETSI EN 300 019-2-2v2.3.1 |
| Rough handling (free fall etc.) | ETSI EN 300 019-2-2v2.3.1 |
| EMC tests | IEC 61326-1- Industrial Standard |
| Electrostatic discharge | EN 61000-4-2 |
| Fast transient burst | EN 61000-4-4 |
| RF field immunity | EN 61000-4-3 |
| Transient surge | EN 61000-4-5 |
| Conducted RF immunity | EN 61000-4-6 |
| Immunity to voltage dips and short interrupts | EN 61000-4-11 |
| Safety tests | |
| Electrical safety | IEC 60950-1 |
| Enclosure protection and IP class | IP66 acc. IEC 60529. Sand & dust |
| test acc. MIL-STD 810 G Method 506.5 Procedure 1 | |
| Enclosure materials | Stainless steel AISI316L, painted white |
| Enclosure size | 600 (H) x 500 (W) x 200 (D) mm |
| Mast | Tiltable 2/3/10 m pole mast |
| Weight | Enclosure approx. 30 kg |
| 10 m mast with sensors 75...125 kg (composite mast) | |
| 150...200 kg (aluminum & steel mast) | |
| Maximum wind speed | 75 m/s with 10 m mast and two guy wire sets |
| Powering | 90...264 VAC, 45...65 Hz |
| 12...24 VDC recommended (30 VDC max.) | |
| Solar panel | 30W / 2 x 30W |
| Internal battery | Up to 52 Ah / 12 V |
| Battery regulator | Charge/recharge control |
| Temperature compensation | |
| Deep discharge protection | |
| Simultaneous inputs from solar and AC (mains) power allowed | |
*More detailed technical specs, please see the AWS310 datasheet.
